A few weeks after the final draft of the fourth edition of Mastering Docker was submitted Docker made the announcement that they would be making changes to the retention of images in Docker Hub as well as the introduction of rate limits.
These changes make complete sense given that at the time of writing this post there are over 150 million images taking up over 15 PB of storage, of that 10 PB of the images haven’t been accessed in over 6 months and 4.5 PB are associated with free Docker Hub accounts — so removing these inactive images is going to give them a hell of cost-saving.
A few weeks after Docker’s announcement, GitHub made their own announcement, the public beta of GitHub Container Registry. This is the natural evolution of how container images are handled in GitHub Packages as you can now publish public images for free.
I have had the repo which has hosted the Dockerfiles for my containers since May 2014 which is linked to my Docker Hub account and as some of my images haven’t been touched in quite a while I thought it was time to move them.
To do this I would need to update all of my Dockerfiles and also create a GitHub Action for each of the container images.
The first part would be easy, lets look at the Dockerfile for Apache Bench:
### Dockerfile
#
# See https://github.com/russmckendrick/docker
FROM ghcr.io/russmckendrick/base:latest
LABEL org.opencontainers.image.authors "Russ McKendrick <[email protected]>"
LABEL org.opencontainers.image.source "https://github.com/russmckendrick/docker"
LABEL org.opencontainers.image.description "Apache Bench container, see this containers GitHub repo for more info"
RUN apk add -U apache2-utils
RUN rm -rf /var/cache/apk/*
As you can see, I am using my own base image which is hosted at ghcr.io/russmckendrick/base:latest
, I am also using the OpenContainer annotation keys as some of these are supported by the GitHub Container Registry, like org.opencontainers.image.source
, having this defined in the image will automatically link the back to the repo which means the README
file will be imported at build time.
The rest of the Dockerfile is straight forward and hasn’t changed from when I was using it for Docker Hub.
Now that the Dockerfile has been updated I needed to create a GitHub Action to build and push my images whenever the Dockerfile was updated, however, as the repo contains all of my Dockerfiles in separate folders I would need to ensure that I didn’t build and push every image each time that the repo was updated.
To get around this I created an individual workflow for each container, for example for Apache Bench I created the following YAML file at .github/workflows
:
name: ab
on:
push:
branches: master
paths:
- '!**'
- 'ab/**'
jobs:
login-build-and-push:
runs-on: ubuntu-latest
steps:
-
name: Checkout
uses: actions/checkout@v2
-
name: Set up Docker Buildx
uses: docker/setup-buildx-action@v1
with:
driver-opts: image=moby/buildkit:master
-
name: Get current date
id: date
run: echo "::set-output name=date::$(date +'%Y%m%d%H%M')"
-
name: Login to the GitHub Container Registry
uses: docker/login-action@v1
with:
registry: ghcr.io
username: ${{ github.repository_owner }}
password: ${{ secrets.GHCR_TOKEN }}
-
name: Build and push image
id: docker_build
uses: docker/build-push-action@v2
with:
push: true
context: ./${{ github.workflow }}/
file: ./${{ github.workflow }}/Dockerfile
tags: |
ghcr.io/${{ github.repository_owner }}/${{ github.workflow }}:latest
ghcr.io/${{ github.repository_owner }}/${{ github.workflow }}:${{ steps.date.outputs.date }}
-
name: Image digest
run: echo ${{ steps.docker_build.outputs.digest }}
There are a few things to discuss so I will start from the top and break down the file in a little more detail, starting with the name:
name: ab
Now that my look simple, but, I named each of the workflows after the folder where the Dockerfile is hosted within my repo, this meant that I could use the ${{ github.workflow }}
variable within the job definitions so I didn’t have to hardcode anything outside of the following:
on:
push:
branches: master
paths:
- '!**'
- 'ab/**'
This section defines when the workflow should be triggered, here I am doing it whenever the main branch is pushed to — but only if any of the files in the ab
folder changes. To do this I am using two paths, the first !**
tells the workflow to ignore all changes to everything apart from the include folder which is defined as ab/**
, unfortunately I can’t use the ${{ github.workflow }}
here as at this point in the workflow the it hasn’t been started so I can use variables meaning I have to hardcode the path.
Moving on to the actual build, there is a single job called login-build-and-push
, as you may have guessed - this does all of the work:
jobs:
login-build-and-push:
runs-on: ubuntu-latest
The first step is common to all workflows and checks out the repo:
-
name: Checkout
uses: actions/checkout@v2
The next step does the setup of Docker Buildx using the action provided by Docker themselves:
-
name: Set up Docker Buildx
uses: docker/setup-buildx-action@v1
with:
driver-opts: image=moby/buildkit:master
“Docker Buildx” you might be thinking to yourself, what’s that? This is a Docker CLI plugin which extends the build functionality of Docker using BuildKit, it introduces the following features:
- Full BuildKit capabilities with container driver
- Multiple builder instance support
- Multi-node builds for cross-platform images
- Compose build support
- High-level build constructs (bake)
- In-container driver support (both Docker and Kubernetes)
The reason why I am using it as I want to tag each image twice, once with latest
and also once with the build date and time. There is a known issue where you will receive an Unexpected status: 401 Unauthorized error if you try and push more than one tag which we are doing in step #5.
In the next step I am getting the current date and time, then setting it as an output variable so I can use it on step #5:
-
name: Get current date
id: date
run: echo "::set-output name=date::$(date +'%Y%m%d%H%M')"
Now we are at the point where we are ready to login to the GitHub Container Registry service:
-
name: Login to the GitHub Container Registry
uses: docker/login-action@v1
with:
registry: ghcr.io
username: ${{ github.repository_owner }}
password: ${{ secrets.GHCR_TOKEN }}
As you can see, I am logging to ghcr.io
, which is the registry URL, as me using the ${{ github.repository_owner }}
variable. The password is a Personal Access Token (PAT) which has the following permissions:
- delete:packages
- read:packages
- write:packages
- repo
The token is then stored in an encrypted secret called GHCR_TOKEN
. For details on how to create a PAT click here
and for more encrypted secrets see here
.
Now that I am logged in I can build and push my the two tagged images using step #5:
-
name: Build and push image
id: docker_build
uses: docker/build-push-action@v2
with:
push: true
context: ./${{ github.workflow }}/
file: ./${{ github.workflow }}/Dockerfile
tags: |
ghcr.io/${{ github.repository_owner }}/${{ github.workflow }}:latest
ghcr.io/${{ github.repository_owner }}/${{ github.workflow }}:${{ steps.date.outputs.date }}
This is where the ${{ github.workflow }}
variable comes into play, here I am using to define both the working directory (context
) and also the path to the Dockerfile (file
) as well as in combination with the ${{ github.repository_owner }}
variable to generate the two tags I want to push.
Once pushed, the final step runs and this just outputs some images on the image which has just been pushed:
-
name: Image digest
run: echo ${{ steps.docker_build.outputs.digest }}

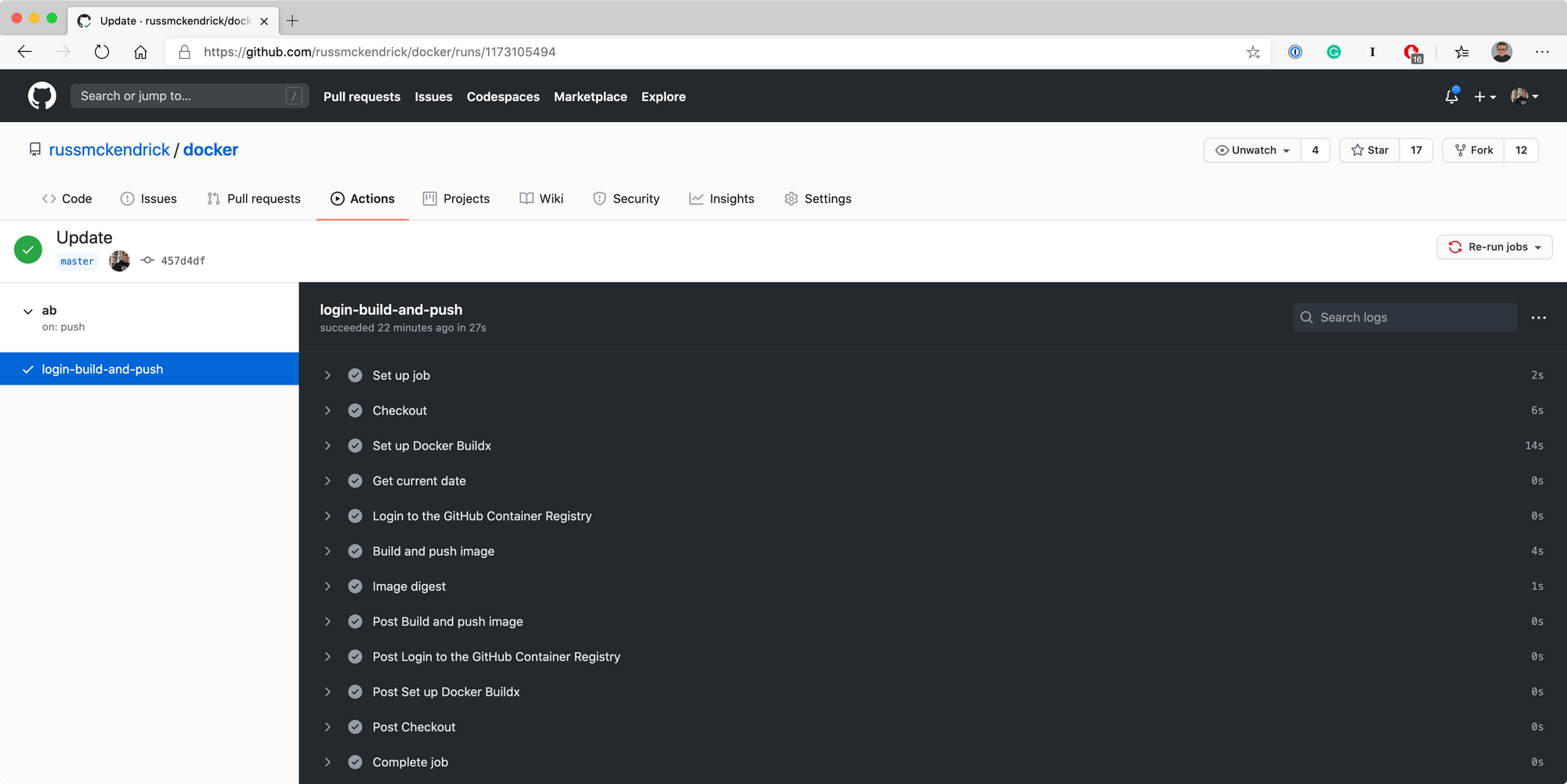

After checking in the changes it triggered the build as expected and you see the output below:

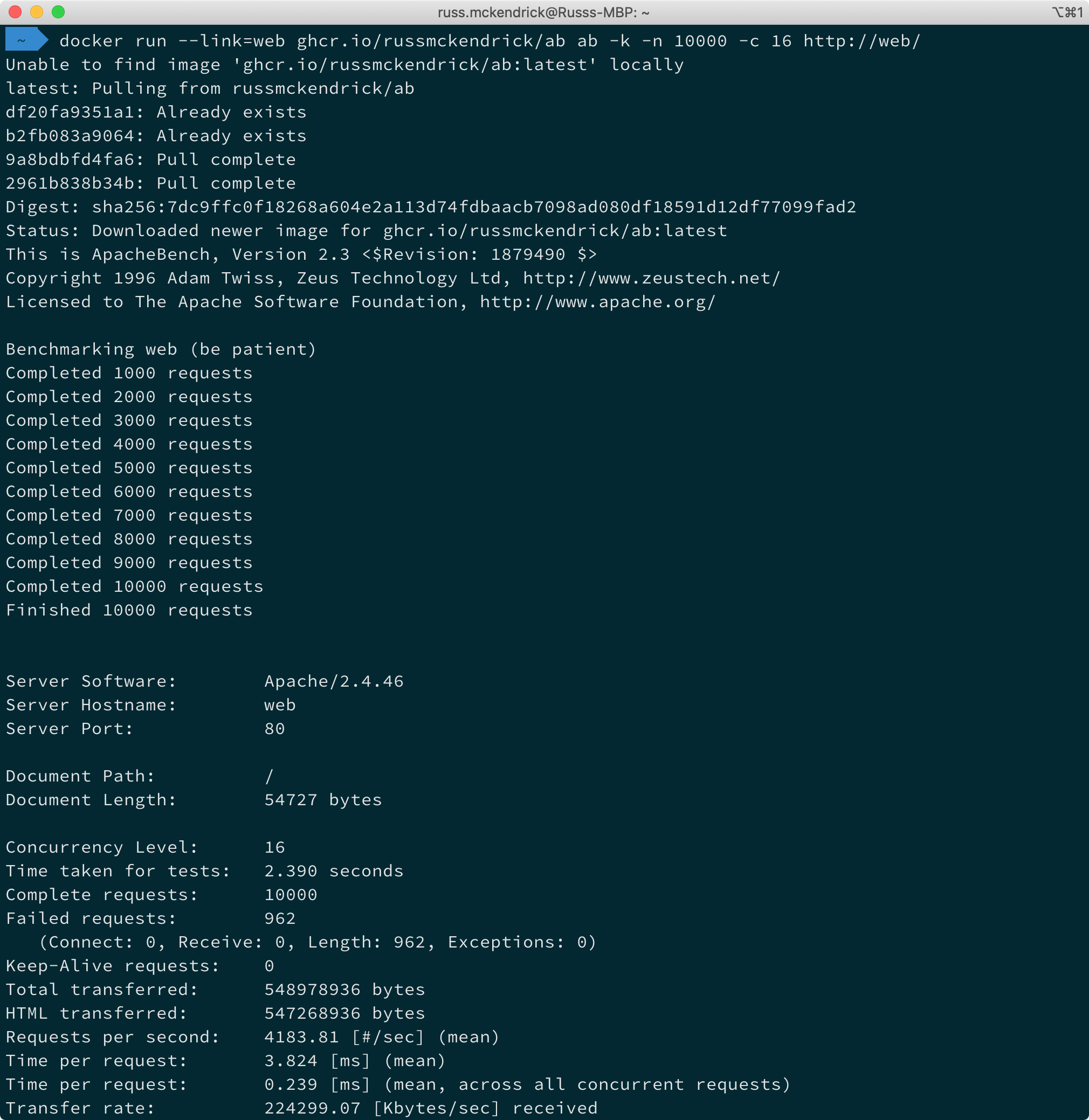

Once pushed I was able to run Apache Bench by running the following commands:
docker run --link=web ghcr.io/russmckendrick/ab ab -k -n 10000 -c 16 http://web/
Running the containers
I then repeated this process for the rest of my images, you can find the full repo at https://github.com/russmckendrick/docker/ with the workflow files at https://github.com/russmckendrick/docker/tree/master/.github/workflows and finally, the resulting images are at https://github.com/russmckendrick?tab=packages .
